Source Insight Application Window

The user interface of Source Insight consists mainly of:

The main menu and toolbar area at the top.

The source file windows that you edit files in.

Tool windows, which can dock or float.

Source Insight is an MDI (Multiple Document Interface) application. This means that each source file you open has its own child window contained within the Source Insight application window.

The main Source Insight application window contains the main toolbar at the top. You will spend most of your time working in source file windows.

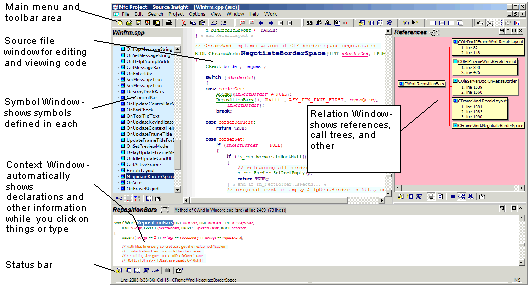

Figure 3.1 The main Source Insight program window, showing a source file window with a symbol window attached on the left side, and a Relation Window docked to the right edge. The Context Window appears docked at the bottom edge.
